*Available body materials: PVC/PP/PVDF
*Available seal materials : EPDM and FPM
*Available size: from 1/2"to 2"size
*100 % pressure tested at our factory
*Other Materials available (MOQ apply)
*Standard: JIS/DIN/BSPT/ANSI/NPT
*Connect with Pneumatic or Electric Actuators directly

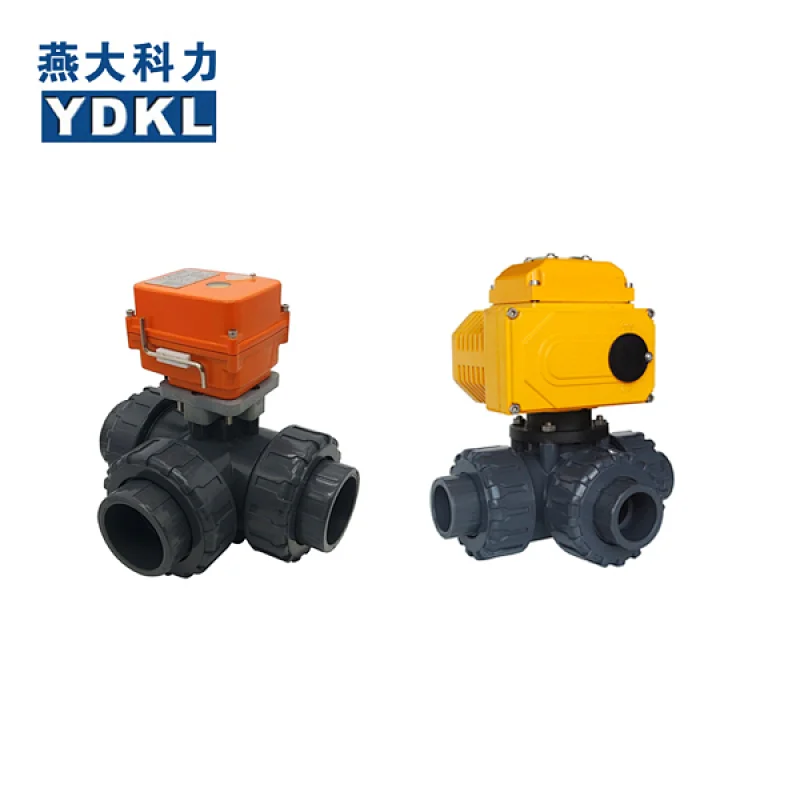

Three way 3way water pvc ball valve
- Model NO.:
- KLBVQ
- Price:
- USD 36.00-70.00 / set
- Delivery:
- FOB
- Minimum order quantity:
- 1 set
- Supply Ability:
- 1000 set / Month
- Country of Origin:
- Any port,China
- Type:BALL VALVES
- Place of Origin:CN;HEB
- Application:General
- Temperature of Media:Medium Temperature
- Power:Manual
- Media:Water
- Structure:BALL
- Brand Name:YDKL
- Model Number:KLBVQ
- Port Size:1/2"-2"
- Standard of Socket Way:DIN JIS ANSI
- Standard of Threaded Way:BSPT NPT
- Body material:PVC/UPVC/PP
- Ball material:PVC
- Handle material:Plastic
- Seat material:PTFE
- O-ring material:EPDM
- Connection:Socket/Threaded
- Certificate:ISO9001/ISO14001
- Product name:three way 3way water pvc ball valve
Why choose us
three way 3way water pvc ball valve
Welcome !
We are the manufacturer of
plastic valves and plastic pipe fittings(PP,PVC,CPVC,PVDF)...
OEM ODM available
Click here directly to submit your requirement. VIP >>
Product Description
Design Advantages:
1. Extra-large diameter shaft is reinforced by additional resin and eliminates stem breaks.
2. Concentric machined ball.
3. Union ends for ease of piping and removal.
4. Machined end connector ensure the precision of size.
5. Stainless insert of shaft are more durable and easy to connect with actuator directly.
Application Case
It is a wise way to use YDKL motorized 3 way ball valve to replace to motor valve in above picture.
Standard of pipe line
Normal size | Mean outside diameter mm | ||||||
B.S. | ANSI. | JIS | DIN | ||||
1/2'' | 21.2 | 21.34 | 22.00 | 20 | |||
3/4'' | 26.6 | 26.67 | 26.00 | 25 | |||
1'' | 33.4 | 33.40 | 32.00 | 32 | |||
1-1/4'' | 42.1 | 42.16 | 38.00 | 40 | |||
1-1/2'' | 48.1 | 48.26 | 48.00 | 50 | |||
2'' | 60.2 | 60.28 | 60.00 | 63 | |||
2-1/2'' | 75.2 | 73.03 | 76.00 | 75 | |||
3'' | 88.7 | 88.90 | 89.00 | 90 | |||
4'' | 114.1 | 114.3 | 114 | 110 | |||
5'' | 140 | - | 140 | 140 | |||
6'' | 160 | 168.3 | 165 | 160 | |||
8'' | 225 | 219.1 | 216 | 200 | |||
10'' | 200 | 273.1 | 267 | 250 | |||
12'' | 315 | 223.9 | 318 | 315 | |||
Products Catalog
Production Line
Our Company
Package & Delivery
FAQ
Q:Are you trading company or manufacturer ?
A:We are professional manufacturer,specialized in VALVES for many years.
Q:How about OEM or ODM?
A:YDKL have experienced technical team,which can design the valve according to customized request.
Q:How long is your delivery time?
A:Generally,It is 7 days for the conventional product in stock,otherwise it is 20-30 days after deposit.Urgent order can be negotiable.
Q:Do you provide samples ?
A:Absolutely! But we consider to receive small amount of sample fee as a sign of sincerely cooperation and will compensate it in products for your future order.
Q:Can I have my own Logo on the product?
A:Yes, sure,if your quantity is considerable,we would like to engraved your logo in the products.
