- Place of Origin:CN;HEB
- Technics:Casting
- Connection:Flange
- Shape:Equal
- Brand Name:YDKL
- Model Number:KLflange
- Head Code:Round
- Material:PVC/CPVC/PP/PVDF
- Pressure Rating:200psi@20°F
- Body Color:Grey,blue,black,or customized
- End Connection:Threaded
- Seals:NBR
- Options:BSPT or NPT
- Design:Full flow design
- Size:20mm--400mm
- Value:7.7-340
- Product name:Construction material ASTM pvc pipe fitting sch80 van stone flange

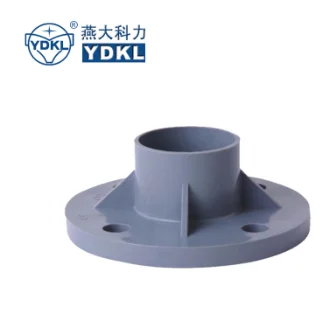

Construction material ASTM pvc pipe fitting sch80 van stone flange for water supply
Application: Valve Fittings
Design Advantages (Valves):
1. Extra-large diameter shaft is reinforced by additional resin and eliminates stem breaks.
2. Concentric machined ball.
3. Union ends for ease of piping and removal.
4. Machined end connector ensure the precision of size.
5. Stainless insert of shaft are more durable and easy to connect with actuator directly.
*Available body materials: PVC/PP/PVDF |  |
It is a wise way to use YDKL motorized 3 way ball valve to replace to motor valve in above picture.
PIPE STANDARD OF PVC PIPE
| Normal size | Mean outside diameter mm | |||
| B.S. | ANSI. | JIS | DIN | |
| 1/2'' | 21.2 | 21.34 | 22.00 | 20 |
| 3/4'' | 26.6 | 26.67 | 26.00 | 25 |
| 1'' | 33.4 | 33.40 | 32.00 | 32 |
| 1-1/4'' | 42.1 | 42.16 | 38.00 | 40 |
| 1-1/2'' | 48.1 | 48.26 | 48.00 | 50 |
| 2'' | 60.2 | 60.28 | 60.00 | 63 |
| 2-1/2'' | 75.2 | 73.03 | 76.00 | 75 |
| 3'' | 88.7 | 88.90 | 89.00 | 90 |
| 4'' | 114.1 | 114.3 | 114 | 110 |
| 5'' | 140 | - | 140 | 140 |
| 6'' | 160 | 168.3 | 165 | 160 |
| 8'' | 225 | 219.1 | 216 | 200 |
| 10'' | 200 | 273.1 | 267 | 250 |
| 12'' | 315 | 223.9 | 318 | 315 |
Andyou may leave us message for more information.
We have different sizes of products even for a single item,for different application situation.
You may leave us message for the catalogue,get the full range of sizes.
DHL,UPS,FedEx,EMS,TNT,Air freight sea freight
1.1-100pcs:2-7days usually by express door to door(DHL,UPS,FedEx,TNT etc.)
2.101pcs-500pcs:7-15days By express, by air or by sea
3.501pcs-2000pcs:with 20 days By air or by sea
4.2001pcs-10000pcs:with 30days By air or by sea
 | Q:Are you trading company or manufacturer ? A:We are professional manufacturer,specialized in VALVES for many years. Q:How about OEM or ODM? A:YDKL have experienced technical team,which can design the valve according to customized request. Q:How long is your delivery time? A:Generally,It is 7 days for the conventional product in stock,otherwise it is 20-30 days after deposit.Urgent order can be negotiable. Q:Do you provide samples ? A:Absolutely! But we consider to receive small amount of sample fee as a sign of sincerely cooperation and will compensate it in products for your future order. Q:Can I have my own Logo on the product? A:Yes, sure,if your quantity is considerable,we would like to engraved your logo in the products. |
