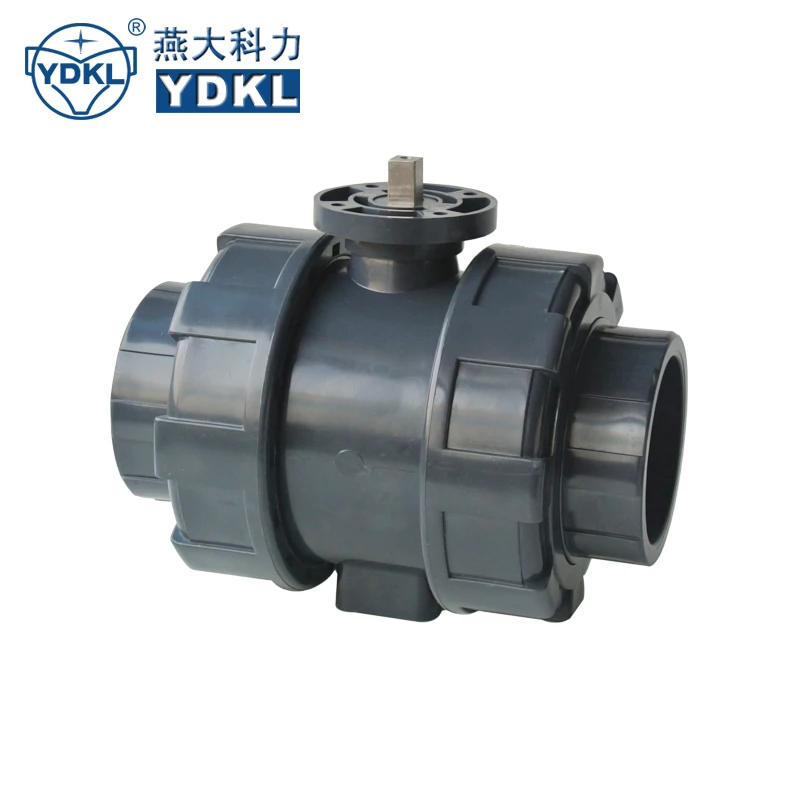

PVC U Torque Ball Valve For Liquid Diverter
PVC U Torque Ball Valve For Liquid Diverter
PVC U Torque Ball Valve For Liquid Diverter
PVC U Torque Ball Valve For Liquid Diverter
PVC U Torque Ball Valve For Liquid Diverter
PVC U Torque Ball Valve For Liquid Diverter
PVC U Torque Ball Valve For Liquid Diverter
PVC U Torque Ball Valve For Liquid Diverter
PVC U Torque Ball Valve For Liquid Diverter
PVC U Torque Ball Valve For Liquid Diverter
PVC U Torque Ball Valve For Liquid Diverter
PVC U Torque Ball Valve For Liquid Diverter
PVC U Torque Ball Valve For Liquid Diverter

PVC U Torque Ball Valve For Liquid Diverter

Model NO.
KLBVM20-110
Price:
USD 2.00-50.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
200000 set / Year
Country of Origin:
TIANJIN
Quantity:
  • Type:BALL VALVES
  • Place of Origin:CN;HEB
  • Application:General
  • Temperature of Media:Normal Temperature
  • Power:Manual
  • Media:Water
  • Structure:BALL
  • Brand Name:YDKL
  • Model Number:KLBVM20-110
  • Port Size:1/2''--4''
  • Material:PVC
  • Pressure:200psi/PN16
  • Temperature:0-27 Degree-C
  • Standard:DIN/ JIS / ANSI /BS/CNS
  • Connect way:Socket / Thread / Flange
  • Design:Full Port Design
  • O-Ring:Double O-Ring Stem Seal
  • Seals:FPM or EPDM Seals
  • Torque:low torque and adjustable seat retainer
  • Product name:Pvc U Torque Ball Valve For Liquid Diverter

Pvc U Torque Ball Valve For Liquid Diverter

Product Description

Pvc U Torque Ball Valve For Liquid Diverter

-Professional technical team,quickly feedback customized solutions.

-Comply with ASTM standard, ROSH environmental certification, SGS certification.

-Promise to use new materials.

-Advanced production equipment to ensure the quality of the valves.

-100% pre-sale leak-proof test.



Pvc U Torque Ball Valve For Liquid Diverter



Ask a question about this product...



FEATURES

Size: DN15-1/2” to DN100-4”

Material: PVC / PP / CPVC /PVDF

Liner: EPDM / FPM

Connect Way: Thread / Slip /Flange

Standard: DIN / ANSI /JIS / NPT/ BSPT

Options: Manual Type /ready for actuator type/Pneumatic and Electric actuator type

Pvc U Torque Ball Valve For Liquid Diverter

 plastic pvc TU true union ball valve

EXPLOSIVE CHART

Pvc U Torque Ball Valve For Liquid Diverter





NO

PARTS

PCS

MATERIALS

1

Cap

1

PVC

2

Handle

1

PVC

3

O-ring

2

EPDM

4

Stem

1

PVC

5

Seal Carrier

1

PVC

6

Ball

1

PVC

7

Ball Seat

2

PTFE

8

O-ring

2

EPDM

9

O-ring

1

EPDM

10

End Connector

2

PVC

11

Union Nut

2

PVC

12

Body

1

PVC

13

Flange

1

PVC

14

O-ring

2

EPDM



02/05 type electric actuator features

Pvc U Torque Ball Valve For Liquid Diverter

Product Details

Pvc U Torque Ball Valve For Liquid Diverter

Click here for more information...

Products Catalog
Company Information

 Pvc U Torque Ball Valve For Liquid Diverter

Qinhuangdao YDKL Plastic Co.,Ltd based in Qinhuangdao,Hebei,has been an earnest manufacturer of thermoplastic valves and flow control products for more that 17 years in china. YDKL provide 3 way ball valves,true union ball valves,butterfly valves for wide range of applications.Such as the field of chemical, engineering, electronics, food, medical treatment, water supply and drainage projects,construction materials,farm irrigation,sea breading.YDKL has earned an excellent reputation for product design,manufacturing precision,quality control,the first time of customer service.Thanks to their support and loyalty,YDKL has been preceived as a growing force in the area of thermoplastic valves and flow control.
