- Type:BALL VALVES
- Place of Origin:CN;HEB
- Application:General
- Temperature of Media:Normal Temperature
- Media:Water
- Structure:BALL
- Brand Name:YDKL
- Model Number:KLPPH
- Port Size:DN15-1/2"
- Power:Electric
- Body material:PPH

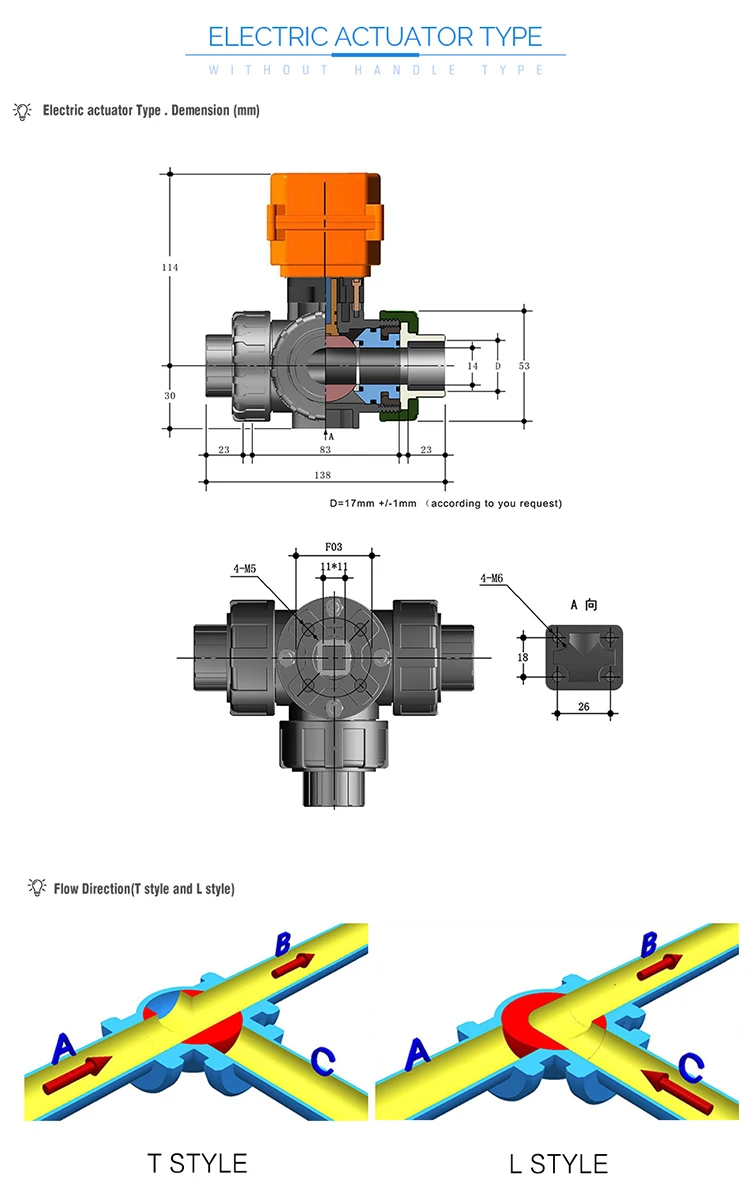

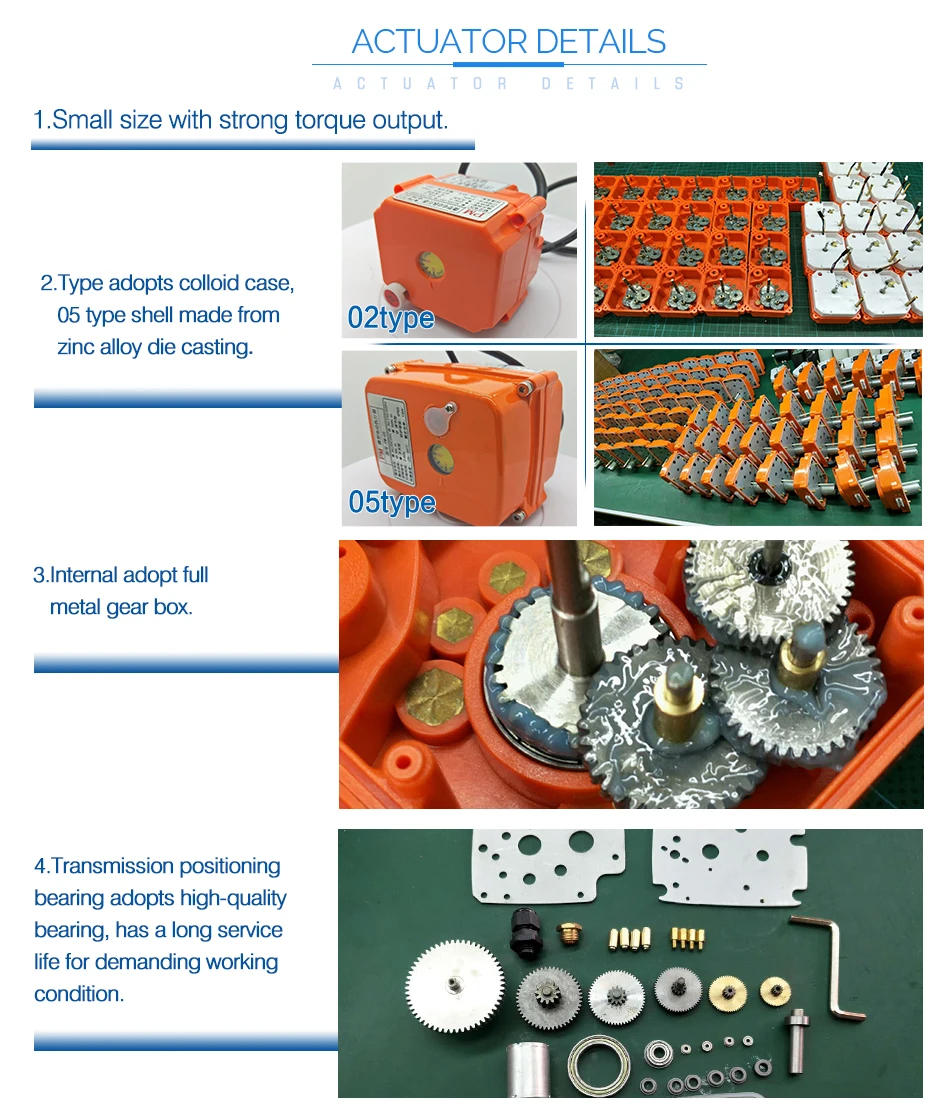

- Actuator:02/05 type electric actuator
- Body Color:White
- Connect way:Socket or Thread or Flange
- Standard:DIN / JIS / BS / ANSI
- Certificate:ISO9001,ISO14001
- Ball seat material:EPDM/FPM
- Size:1/2"
- Customization:OEM
- Product name:PPH DC 24V motorized 1/2 inch 3 way electric motor ball valve
PPH DC 24V motorized 1/2 inch 3 way electric motor ball valve
Click here directly to submit your requirement. VIP >>
*Available body materials: PPH The material of the O-ring can be changed,2 options, FKM or EPDM *CPVC bracket is more durable |  |
| SIZE | 1/2'' | 3/4'' | 1'' | 1-1/4'' | 1-1/2'' | 2'' |
| Internal Diameter | 19.2 | 24.1 | 30.8 | 38.7 | 48.7 | 62 |
Design Advantages:
1. Extra-large diameter shaft is reinforced by additional resin and eliminates stem breaks.
2. Concentric machined ball, ball material is optional according to different working condition(PVC, CPVC, PPH)
3. Union ends for ease of piping and removal.
4. Machined end connector ensures the precision of size.
5. The stainless insert of the shaft is more durable and easy to connect with the actuator directly.
DHL,UPS,FedEx,EMS,TNT,Air freight sea freight
1.1-100pcs:2-7days usually by express door to door(DHL,UPS,FedEx,TNT etc.)
2.101pcs-500pcs:7-15days By express, by air or by sea
3.501pcs-2000pcs:with 20 days By air or by sea
4.2001pcs-10000pcs:with 30days By air or by sea
15 years of continuous efforts and breakthroughs Just to make you more satisfied with the products |
A: We are a professional manufacturer, specialized in VALVES for many years.
Q: How about OEM or ODM?
A: YDKL has experienced technical team, which can design the valve according to a customized request.
Q: How long is your delivery time?
A: Generally, It is 7 days for the conventional product in stock, otherwise it is 20-30 days after deposit. Urgent order can be negotiable.
Q: Do you provide samples?
A: Absolutely! But we consider to receive a small amount of sample fee as a sign of sincere cooperation and will compensate it in products for your future order.
Q: Can I have my own Logo on the product?
A: Yes, sure, if your quantity is considerable, we would like to engrave your logo in the products.
Q: The actuator on my automated valve operates, but the valve won’t turn. Why?
A: Most likely the valve stem or actuator coupling is broken.
Q: Why doesn’t my valve open or close completely when the actuator operates it?
A: The electric actuator limit switches or the pneumatic actuator position stops are not correctly adjusted.
Q: I ordered a fail open pneumatic actuated valve by mistake. I needed a fail closed one. What can I do?
A: To make the change just remove the actuator from the valve and turn it, or the valve stem, 90 degrees and remount the actuator.
Q: I’ve installed my automated valve in the line, but now I don’t know if the valve is in the open or closed position. How can I find out?
A: Remove the actuator from the valve and check the valve stem. Most ball valves have stem flats at right angles to the flow when the valve is in the off position. On butterfly valves check the stem flow arrow marking.
Q: How do I wire up my electric actuator?
A: Check the electric wiring schematic that came with the actuator for the correct hookup. Sometimes a copy is inside the actuator cover. If it is missing, don't guess about the connections. Call the manufacturer for a schematic.
