Model NO.
KLBVM90-110
Price:
USD 6.40-6.70 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
200000 set / Year
Country of Origin:
TIANJIN
Quantity:
  • Type:BALL VALVES
  • Place of Origin:CN;HEB
  • Application:General
  • Temperature of Media:Normal Temperature
  • Media:Water
  • Structure:BALL
  • Brand Name:YDKL
  • Model Number:KLBVM90-110
  • Port Size:DN80-3"----DN100-4"
  • Power:Manual/electric/pneumatic
  • Material:PVC/UPVC
  • Pressure:200psi/PN16
  • Temperature:0-27 Degree-C
  • Standard:DIN/ JIS / ANSI /BS/CNS
  • Connect way:Socket / Thread / Flange
  • Design:Full Port Design
  • O-Ring:Double O-Ring Stem Seal
  • Seals:FPM or EPDM Seals
  • Torque:low torque and adjustable seat retainer

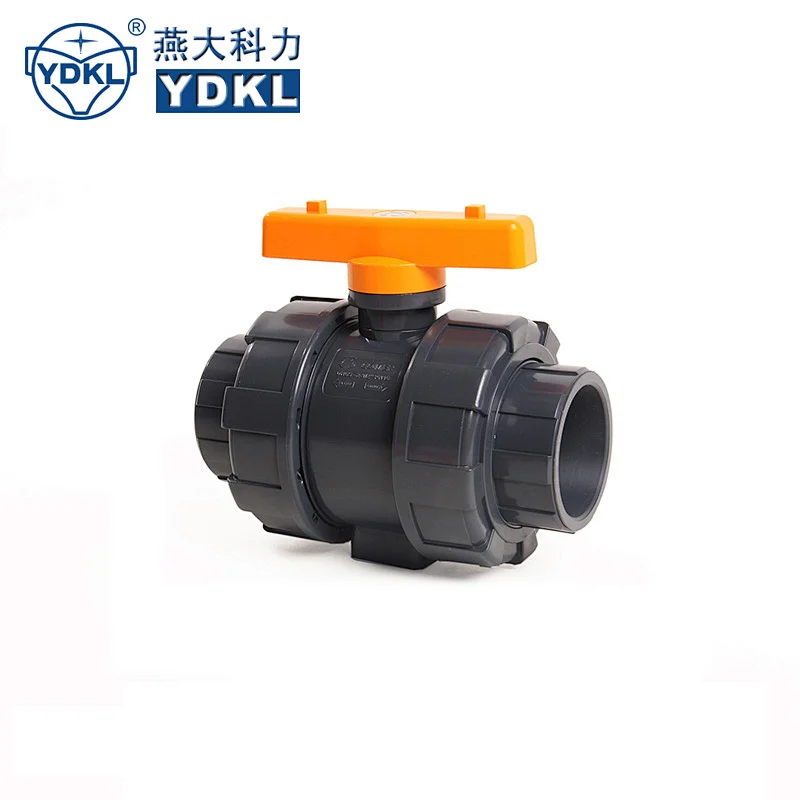

  • Product name:full plastic male pvc ball valve 34
Product Description
Product name:full plastic male pvc ball valve 34

Design Advantages:

1.  Heavy-duty, extra-large diameter shaft is reinforced by additional resin and eliminates stem breaks.
2.  Double shaft O-rings.
3.  PTFE seats backed up with O-rings reduce the wear and tear of repeated cycling.


4. Self compensation of thermal expansion and micro-adjustment of the PTFE ball seats

5.  Concentric machined and mirror-polished ball.
6.  Dual sliding seats use triple O-rings for balance and maximum leak protection.

7. Smooth flow path eliminates pressure loss.

Design Advantages:

8.  True union ends for ease of piping and removal.
9.  Easy actuation, even after installation.
10. Handle can be replaced by actuator directly, no need to mount brackets

OEM HERE!

Size: DN15-1/2"to DN100-4"
Material: PVC / PP / CPVC /PVDF
Liner: EPDM / FPM
Connect Way: Thread / Slip /Flange
Standard: DIN / ANSI /JIS / NPT/ BSPT
Options: Manual Type /ready for actuator type/Pneumatic and Electric actuator type

And you may leave us message for more information.

NO
PARTS
PCS
MATERIALS
1
Cap
1
PVC
2
Handle
1
PVC
3
O-ring
2
EPDM
4
Stem
1
PVC
5
Seal Carrier
1
PVC
6
Ball
1
PVC
7
Ball Seat
2
PTFE
8
O-ring
2
EPDM
9
O-ring
1
EPDM
10
End Connector
2
PVC
11
Union Nut
2
PVC
12
Body
1
PVC
13
Flange
1
PVC
14
O-ring
2
EPDM
Application
Products Catalog
Production line
Our Company

Qinhuangdao YDKL Plastic Co.,Ltd based in Qinhuangdao,Hebei,has been an earnest manufacturer of thermoplastic valves and flow control products for more that 17 years in china.
YDKL provide 3 way ball valves,true union ball valves,butterfly valves for wide range of applications.Such as the field of chemical, engineering, electronics, food, medical treatment, water supply and drainage projects,construction materials,farm irrigation,sea breading.YDKL has earned an excellent reputation for product design,manufacturing precision,quality control,the first time of customer service.Thanks to their support and loyalty,YDKL has been preceived as a growing force in the area of thermoplastic valves and flow control.

Package & Delivery
Related Products
FAQ

Q:Are you trading company or manufacturer ?
A:We are professional manufacturer,specialized in VALVES for many years.
Q:How about OEM or ODM?
A:YDKL have experienced technical team,which can design the valve according to customized request.
Q:How long is your delivery time?
A:Generally,It is 7 days for the conventional product in stock,otherwise it is 20-30 days after deposit.Urgent order can be negotiable.
Q:Do you provide samples ?
A:Absolutely! But we consider to receive small amount of sample fee as a sign of sincerely cooperation and will compensate it in products for your future order.
Q:Can I have my own Logo on the product?
A:Yes, sure,if your quantity is considerable,we would like to engraved your logo in the products.
