DN25-1" KLBVQ32 pvc three 3 way manual valve

Model NO.:
KLBVQ32
Delivery:
FOB
  • Type:BALL VALVES
  • Place of Origin:CN;HEB
  • Application:General
  • Temperature of Media:Normal Temperature
  • Media:Water
  • Structure:BALL
  • Brand Name:YDKL
  • Model Number:KLBVQ32
  • Port Size:DN25-1"
  • Power:Manual
  • Standard or Nonstandard:Standard
  • Handle Color:Blue
  • Body Color:gray
  • Connect way:Thread
  • Certificate:ISO9001,ISO14001
  • Body material:PVC
  • Ball seat material:PTFE
  • Size:DN25-1"
  • Customization:OEM
  • Product name:DN25-1"KLBVQ32 pvc three 3 way manual valve

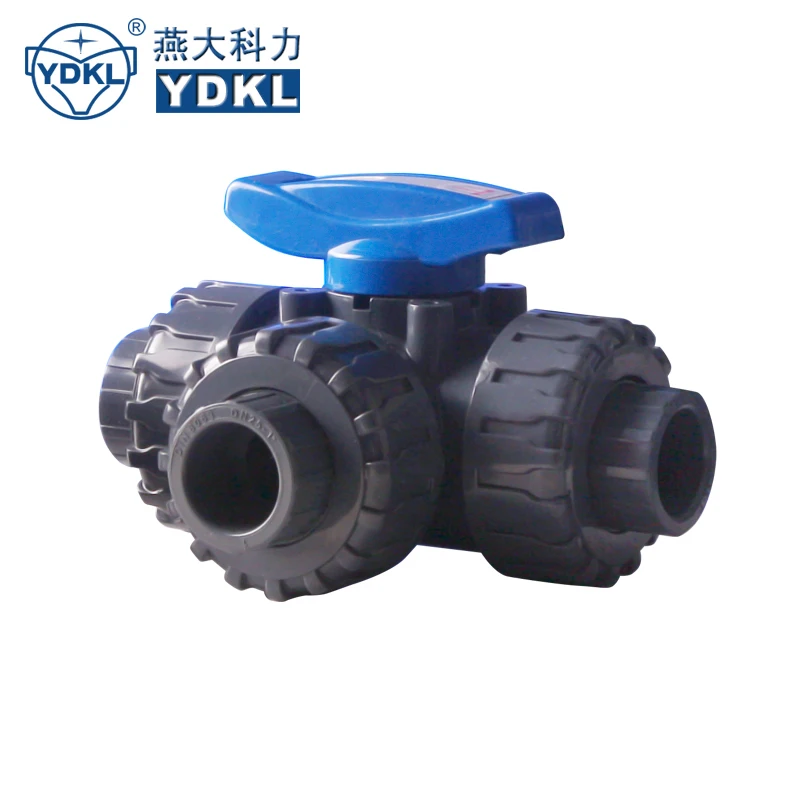

DN25-1"KLBVQ32 pvc three 3 way manual valve

Why choose us

DN25-1

Product Description


DN25-1

Design Advantages:

1. Extra-large diameter shaft is reinforced by additional resin and eliminates stem breaks.
2. Concentric machined ball.
3. Union ends for ease of piping and removal.

4. Machined end connector ensure the precision of size.

5. Stainless insert of shaft are more durable and easy to connect with actuator directly.

*Available body materials: PVC/PP/PVDF
*Available seal materials : EPDM and FPM
*Available size:  from 1/2"to 2"size
*
100 % pressure tested at our factory
*Other Materials available (MOQ apply)
*Standard: JIS/DIN/BSPT/ANSI/NPT
*Connect with Pneumatic or Electric Actuators directly

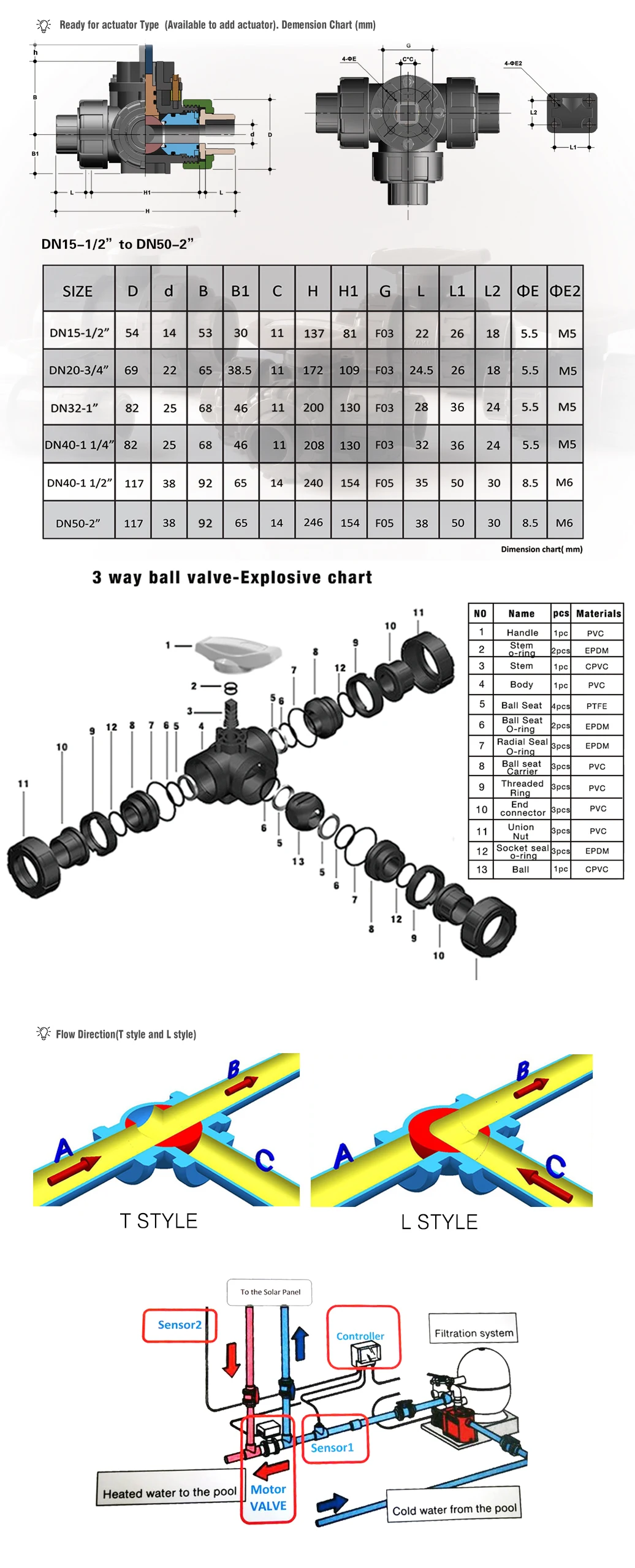

DN25-1

DN25-1

Application Case

It is a wise way to use YDKL motorized 3 way ball valve to replace to motor valve in above picture.

                                    PIPE STANDARD OF PVC PIPE

Normal size    Mean outside diameter mm
 B.S. ANSI. JIS DIN
 1/2'' 21.2 21.34 22.00 20
 3/4''26.6  26.67 26.00 25
 1'' 33.4 33.40 32.00 32
 1-1/4'' 42.1 42.16 38.00 40
 1-1/2'' 48.1 48.26 48.00 50
 2'' 60.2 60.28 60.00 63
 2-1/2'' 75.2 73.03 76.00 75
 3'' 88.7 88.90 89.00 90
 4'' 114.1 114.3 114 110
 5'' 140 - 140 140
 6'' 160 168.3 165 160
 8'' 225 219.1 216 200
 10'' 200 273.1 267 250
 12'' 315 223.9 318 315



Products Catalog

DN25-1

Our Company

DN25-1

Package & Delivery

DN25-1

Related Products



DN25-1

FAQ

DN25-1Q:Are you trading company or manufacturer ?
A:We are professional manufacturer,specialized in VALVES for many years.

Q:How about OEM or ODM?
A:YDKL have experienced technical team,which can design the valve according to customized request.

Q:How long is your delivery time?
A:Generally,It is 7 days for the conventional product in stock,otherwise it is 20-30 days after deposit.Urgent order can be negotiable.

Q:Do you provide samples ?
A:Absolutely! But we consider to receive small amount of sample fee as a sign of sincerely cooperation and will compensate it in products for your future order.

Q:Can I have my own Logo on the product?
A:Yes, sure,if your quantity is considerable,we would like to engraved your logo in the products.
