Model NO.
KL3W05EPLG
Price:
USD 17.80-20.03
Delivery:
FOB
Minimum order quantity:
50
Quantity:
  • Place of Origin:CN;HEB
  • Material:plastic
  • Brand Name:YDKL
  • Model Number:KL3W05EPLG
  • Application:General
  • Port Size:1/2"
  • Standard or Nonstandard:Standard
  • Temperature of Media:Normal Temperature
  • Power:MANUAL/PNEMATIC ACTUATOR/ELECTRIC ACTUATOR
  • Pressure: PN16@22°c, 235PSI@73°f.
  • Structure: 3 way type
  • Media:ACID/WATER/OIL/ALKALI
  • Standard:DIN/ANSI/BSPT/NPT/JIS
  • Body Material:PVC/CPVC/PVDF
  • Seat Material:PTFE/HDPE/TPE
  • O-ring Material:EPDM/FPM
  • Ball Material:CPVC
  • Shaft Material:CPVC
  • Handle Color:Red/Blue/Orange
  • Handle Material:PVC/ABS
  • Connect Way:Threaded/socket/flange
  • Certificate:ROHS

3 way pvc ball valve L port with EPDM liner

  PVC 3 way ball valve

 Design Advantages:


    1.  Extra-large diameter shaft is reinforced by additional resin and eliminates stem breaks;
    2.  Special TPE gasket reduce the wear and tear of repeated cycling;
    3.  Concentric machined ball;

    4.  The precision of small size ball depand on self compensation of mould;

    5.  Union ends for ease of piping and removal.




 Features:



  • Available from 1/2"to 2"size
  • 100 percent pressure tested at our factory
  • Available seal materials are EPDM  and FPM
  • Other Materials available;
  • Minimum quantities apply
  • Available with JIS/DIN/BSPT/ANSI/NPT
  • Available with Pneumatic or Electric Actuators







3 way valve3 way valve











3 way valve

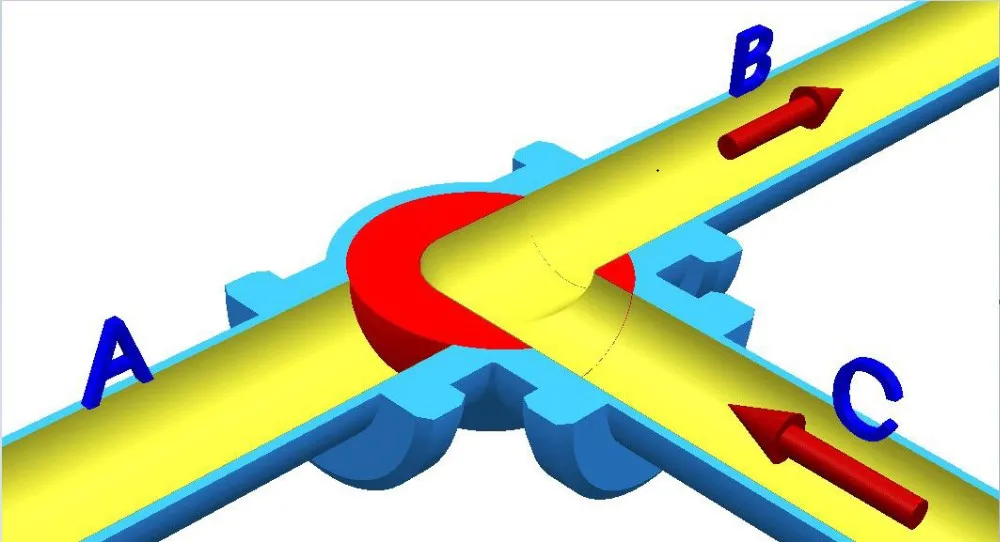

Flow Direction





L style



3 way valve
