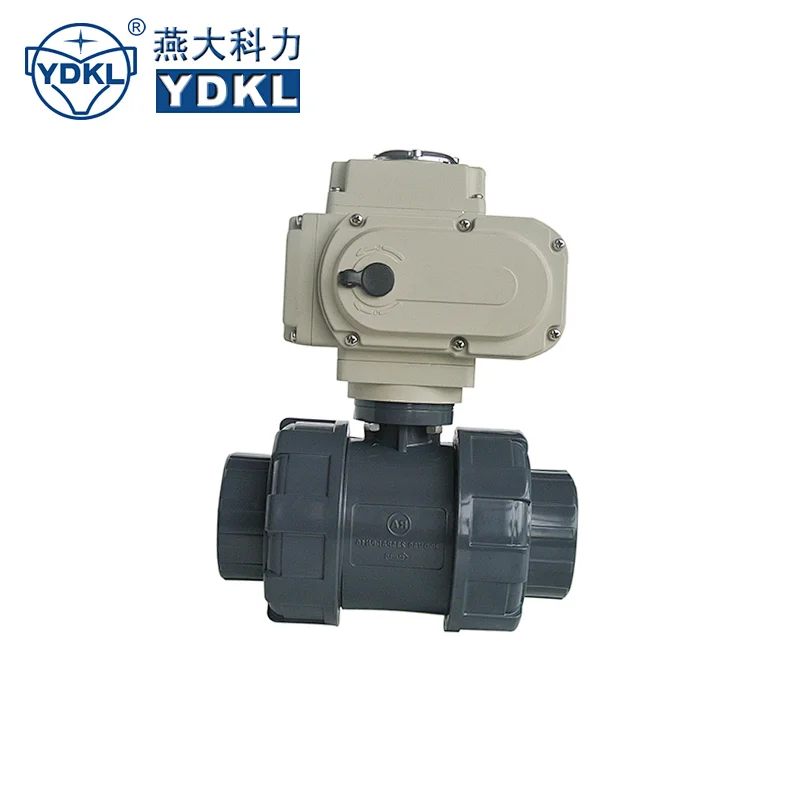

3/4'' 220V AC Irrigation Electric Actuator ball Valve for HVAC systems irrigation park
3/4'' 220V AC Irrigation Electric Actuator ball Valve for HVAC systems irrigation park
3/4'' 220V AC Irrigation Electric Actuator ball Valve for HVAC systems irrigation park
3/4'' 220V AC Irrigation Electric Actuator ball Valve for HVAC systems irrigation park
3/4'' 220V AC Irrigation Electric Actuator ball Valve for HVAC systems irrigation park
3/4'' 220V AC Irrigation Electric Actuator ball Valve for HVAC systems irrigation park
3/4'' 220V AC Irrigation Electric Actuator ball Valve for HVAC systems irrigation park
3/4'' 220V AC Irrigation Electric Actuator ball Valve for HVAC systems irrigation park
3/4'' 220V AC Irrigation Electric Actuator ball Valve for HVAC systems irrigation park
3/4'' 220V AC Irrigation Electric Actuator ball Valve for HVAC systems irrigation park
3/4'' 220V AC Irrigation Electric Actuator ball Valve for HVAC systems irrigation park
3/4'' 220V AC Irrigation Electric Actuator ball Valve for HVAC systems irrigation park
3/4'' 220V AC Irrigation Electric Actuator ball Valve for HVAC systems irrigation park

3/4'' 220V AC Irrigation Electric Actuator ball Valve for HVAC systems irrigation park

Model NO.:
KLelectric
Price:
USD 1.20-70.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
200000 set / Year
Country of Origin:
TIANJIN
Quantity:
  • Type:BALL VALVES
  • Place of Origin:CN;HEB
  • Application:General
  • Temperature of Media:Normal Temperature
  • Power:Manual
  • Media:Water
  • Structure:BALL
  • Brand Name:YDKL
  • Model Number:KLelectric
  • Port Size:4''
  • Material:UPVC
  • Pressure:200psi/PN16
  • Temperature:0-27 Degree-C
  • Standard:DIN/ JIS / ANSI /BS/CNS
  • Connect way:Socket / Thread / Flange
  • Design:Full Port Design
  • O-Ring:Double O-Ring Stem Seal
  • Seals:FPM or EPDM Seals
  • Torque:low torque and adjustable seat retainer
  • Product name:3/4'' 220V Irrigation Electric ball Valve for HVAC irrigation park
Product Description

3/4'' 220V AC Irrigation Electric Actuator ball Valve for HVAC systems irrigation park

Welcome !

We are the manufacturer of
plastic valves and plastic pipe fittings(PP,PVC,CPVC,PVDF)...

OEM ODM available
Click here directly to submit your requirement. VIP >>

FEARTURES

Size: DN15-1/2"to DN100-4"
Material: PVC / PP / CPVC /PVDF
Liner: EPDM / FPM
Connect Way: Thread / Slip /Flange
Standard: DIN / ANSI /JIS / NPT/ BSPT
Options: Manual Type /ready for actuator type/Pneumatic and Electric actuator type

NO
PARTS
PCS
MATERIALS
1
Cap
1
PVC
2
Handle
1
PVC
3
O-ring
2
EPDM
4
Stem
1
PVC
5
Seal Carrier
1
PVC
6
Ball
1
PVC
7
Ball Seat
2
PTFE
8
O-ring
2
EPDM
9
O-ring
1
EPDM
10
End Connector
2
PVC
11
Union Nut
2
PVC
12
Body
1
PVC
13
Flange
1
PVC
14
O-ring
2
EPDM

02/05 type electric actuator features

Products Catalog
Production Line
Why Choose Us

4 inch electrical water tank float ball valve

Professional technical team,quickly feedback customized solutions.
Comply with ASTM standard, ROSH environmental certification, SGS certification.
Promise to use new materials.
Advanced production equipment to ensure the quality of the valves.
100% pre-sale leak-proof test.

Our Company

Qinhuangdao YDKL Plastic Co.,Ltd based in Qinhuangdao,Hebei,has been an earnest manufacturer of thermoplastic valves and flow control products for more that 17 years in china.
YDKL provide 3 way ball valves,true union ball valves,butterfly valves for wide range of applications.Such as the field of chemical, engineering, electronics, food, medical treatment, water supply and drainage projects,construction materials,farm irrigation,sea breading.YDKL has earned an excellent reputation for product design,manufacturing precision,quality control,the first time of customer service.Thanks to their support and loyalty,YDKL has been preceived as a growing force in the area of thermoplastic valves and flow control.

Related Products
FAQ

Q: Are you trading company or manufacturer?

A: We are a professional manufacturer, specialized in VALVES for many years.

Q: How about OEM or ODM?

A: YDKL has experienced technical team, which can design the valve according to a customized request.

Q: How long is your delivery time?

A: Generally, It is 7 days for the conventional product in stock, otherwise it is 20-30 days after deposit. Urgent order can be negotiable.

Q: Do you provide samples?

A: Absolutely! But we consider to receive a small amount of sample fee as a sign of sincere cooperation and will compensate it in products for your future order.

Q: Can I have my own Logo on the product?

A: Yes, sure, if your quantity is considerable, we would like to engrave your logo in the products.

Q: The actuator on my automated valve operates, but the valve won't turn. Why?

A: Most likely the valve stem or actuator coupling is broken.

Q: Why doesn't my valve open or close completely when the actuator operates it?

A: The electric actuator limit switches or the pneumatic actuator position stops are not correctly adjusted.

Q: I ordered a fail open pneumatic actuated valve by mistake. I needed a fail closed one. What can I do?

A: To make the change just remove the actuator from the valve and turn it, or the valve stem, 90 degrees and remount the actuator.

Q: I've installed my automated valve in the line, but now I don't know if the valve is in the open or closed position. How can I find out?

A: Remove the actuator from the valve and check the valve stem. Most ball valves have stem flats at right angles to the flow when the valve is in the off position. On butterfly valves check the stem flow arrow marking.

Q: How do I wire up my electric actuator?

A: Check the electric wiring schematic that came with the actuator for the correct hookup. Sometimes a copy is inside the actuator cover. If it is missing, don't guess about the connections. Call the manufacturer for a schematic.
